Heat pump control that learns from every installation

A touchscreen tablet runs the whole installation: heat pump, variable-speed compressor, zones, tanks, domestic hot water, swimming pool, back-up heating and solar energy. Its on-board artificial intelligence learns every night how the house really behaves, to fine-tune the control.

On-board AI, no Internet needed Variable-speed compressor Multi-function Solar thermal and photovoltaics 5 languages Remote access

5artificial intelligence functions built into the tablet

7types of function, up to 9 of each

20electrical and thermal energy meters

5languages: French, English, German, Italian, Spanish

One tablet, the whole installation

See everything at a glance, adjust everything at a touch

The home screen shows the state of each function in real time: measured temperature, setpoint, function running (animated green border), alarm (red), function disabled (grey).

Heating and cooling zones: heating and cooling room by room or floor by floor, with room sensor and heating curve.
Hot and cold tanks, domestic hot water, swimming pool: each with its own setpoints, schedule and priorities.
Support: back-up heating (electric heater, boiler) that only comes in when the heat pump can no longer cope.
Priorities: the order in which demands are served is set with a single gesture, with groups of equal priority.
Quiet mode: a dedicated schedule to limit fan noise at night.

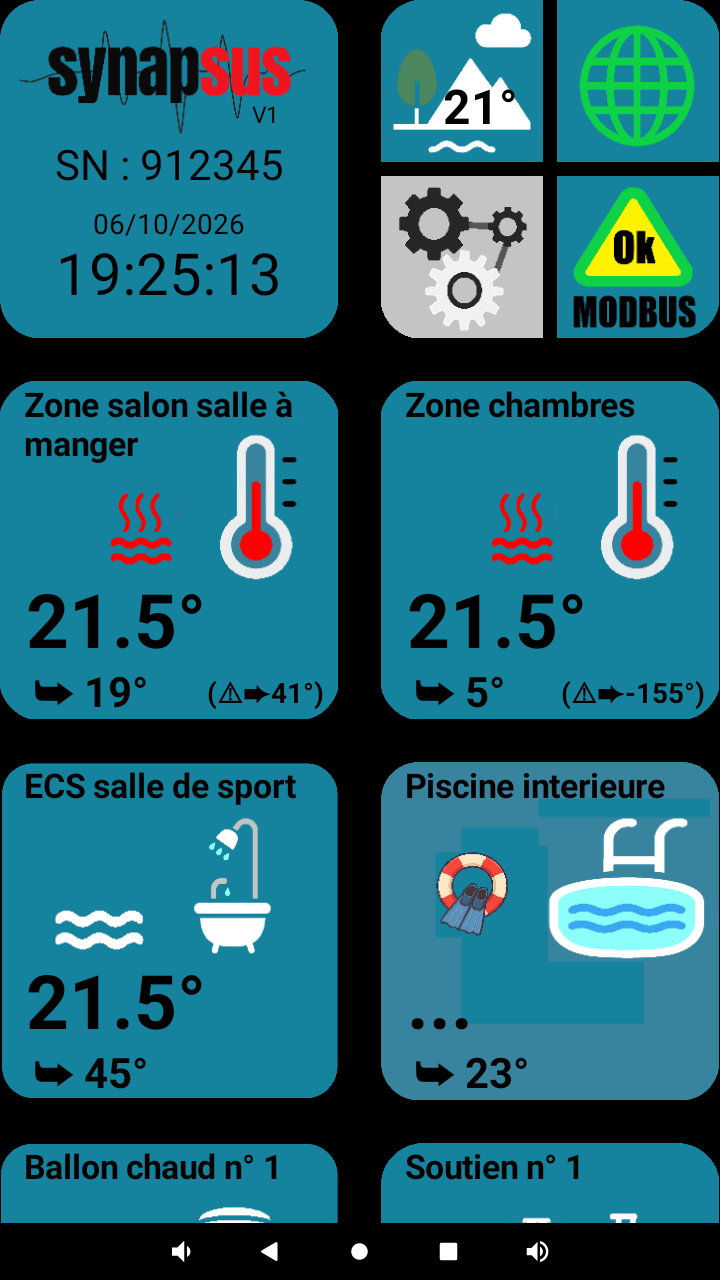

Home screen: weather, heat pump and communication status, zone tiles — The home screen: weather, heat pump status, communication, one tile per function

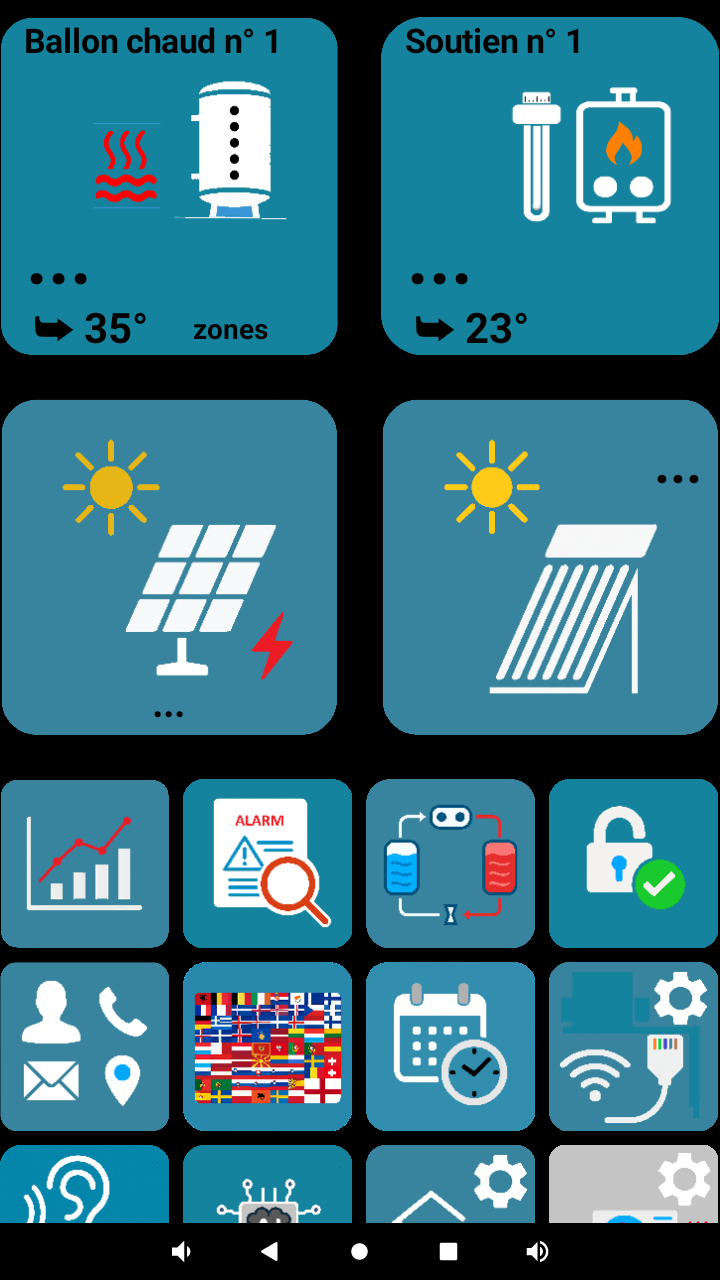

Rest of the home screen: tank, support, energy sources, access tiles — All functions and settings close at hand

Everyday comfort

The right temperature, at the right time

Each function has its own half-hourly schedule and heating curve. The outdoor temperature comes from a sensor or from an Internet weather service, each one backing up the other.

Half-hourly schedules, day by day, with quick copy and a default value.
Heating curves that are easy to set: two points, minimum and maximum limits, a clear graph.
Curve suggested by the AI: the tablet learns the curve that really suits each zone and suggests it.
Simple to use for the owner: on/off, setpoints and schedules, with no code. Everything else is protected.

Weekly half-hourly schedule — Schedule of a zone, half-hour by half-hour

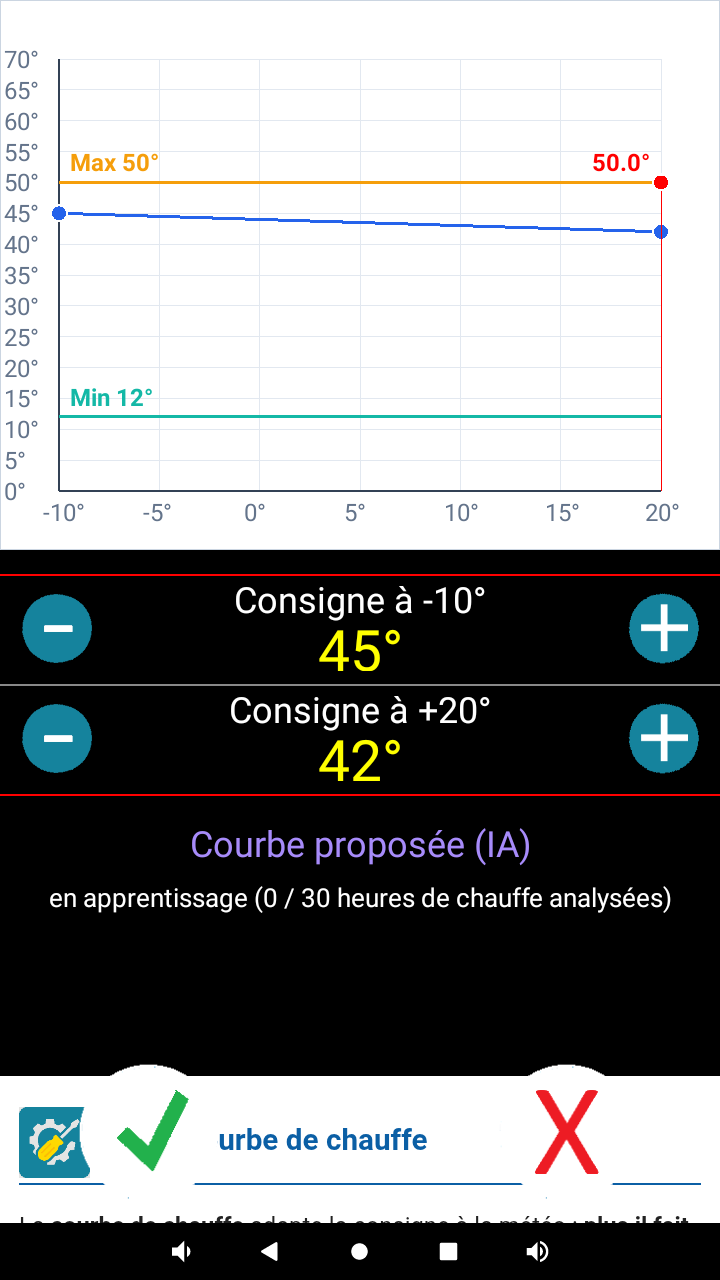

Heating curve and curve suggested by the AI — Heating curve, with the curve suggested by the AI

Variable-speed compressor

Just the right output, no more, no less

synapsus drives the compressor inverter directly. The speed follows the actual demand instead of cycling on and off at full power.

Condensing mode: the heat pump rises gently towards its maximum temperature to run long, steady cycles, which are better for the compressor.
Setpoint mode: the heat pump reaches the setpoint within a reasonable time, then slows down to hold it without overshooting.
Limits respected at all times: maximum heat output, maximum electrical current, condensing temperature.
Electronic expansion valve control: superheat held at its setpoint, gains learned for each operating condition.
Safe commissioning: the inverter parameters are checked at every start-up, and its alarms are logged in plain language.

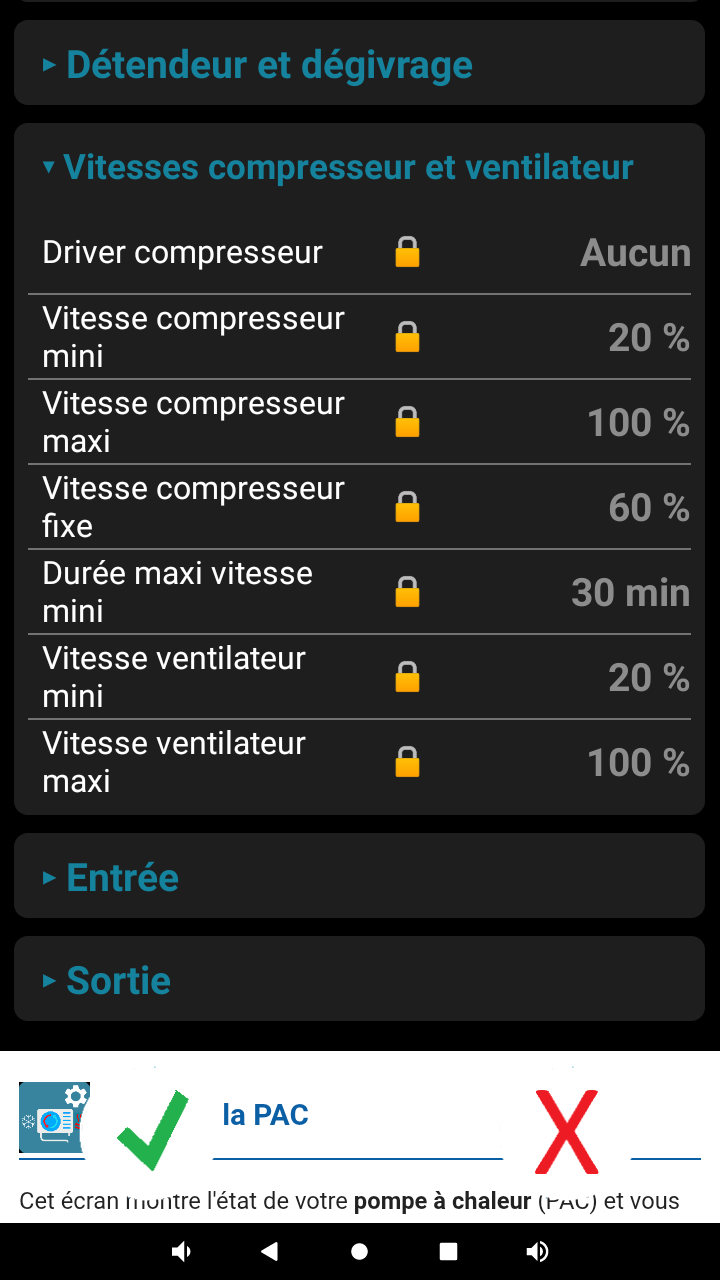

Compressor and fan speed settings — Compressor speeds and driver

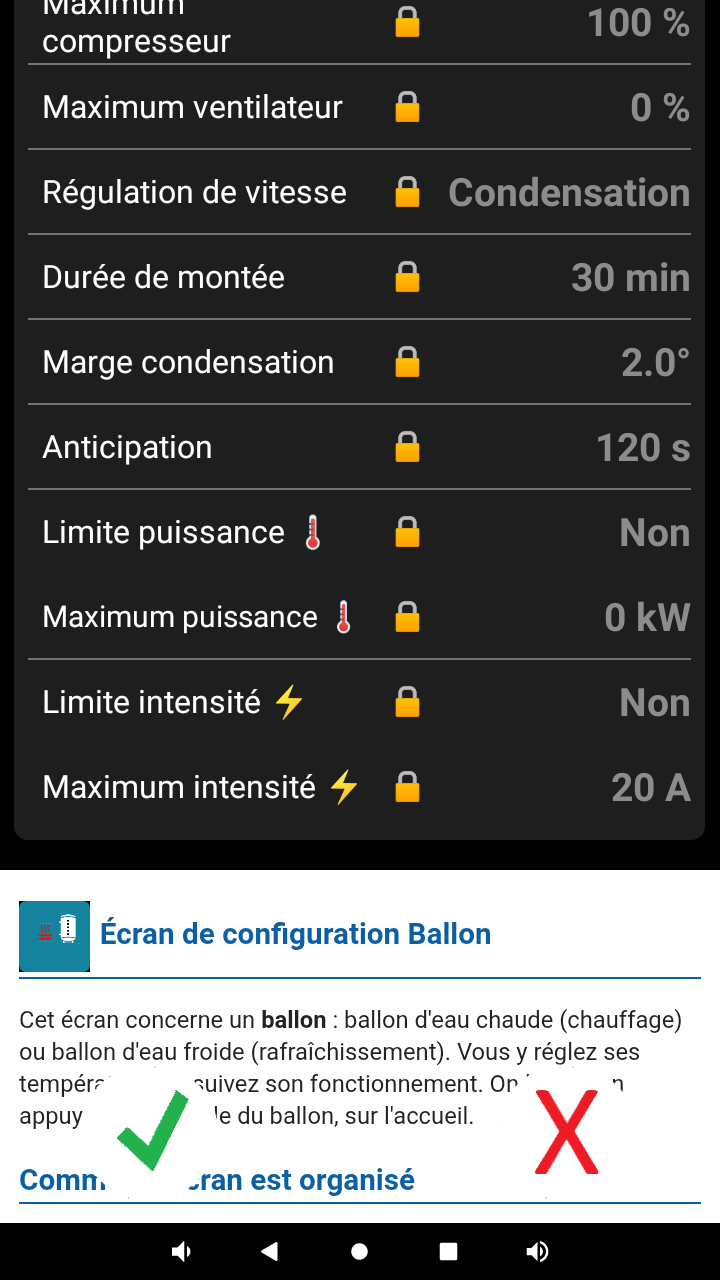

Speed control settings of a function — Control mode and limits, set per function

Safety and monitoring

An installation monitored continuously

Every second, the tablet polls its modules and the heat pump. Any deviation is confirmed, logged and handled according to its severity.

Alarm log

Start and end of each fault, time-stamped. The heat pump is stopped or locked out depending on severity, with an adjustable number of retries.

Communication

A module that stops responding is reported immediately. The port is reopened automatically and the heat pump is put into a safe state.

Energy

Electricity consumed and energy produced, per day and per month, for the heat pump and the functions, with up to 10 meters of each type.

Refrigerant circuit

Pressures, temperatures, superheat, subcooling, speeds and COP on a clear synoptic diagram.

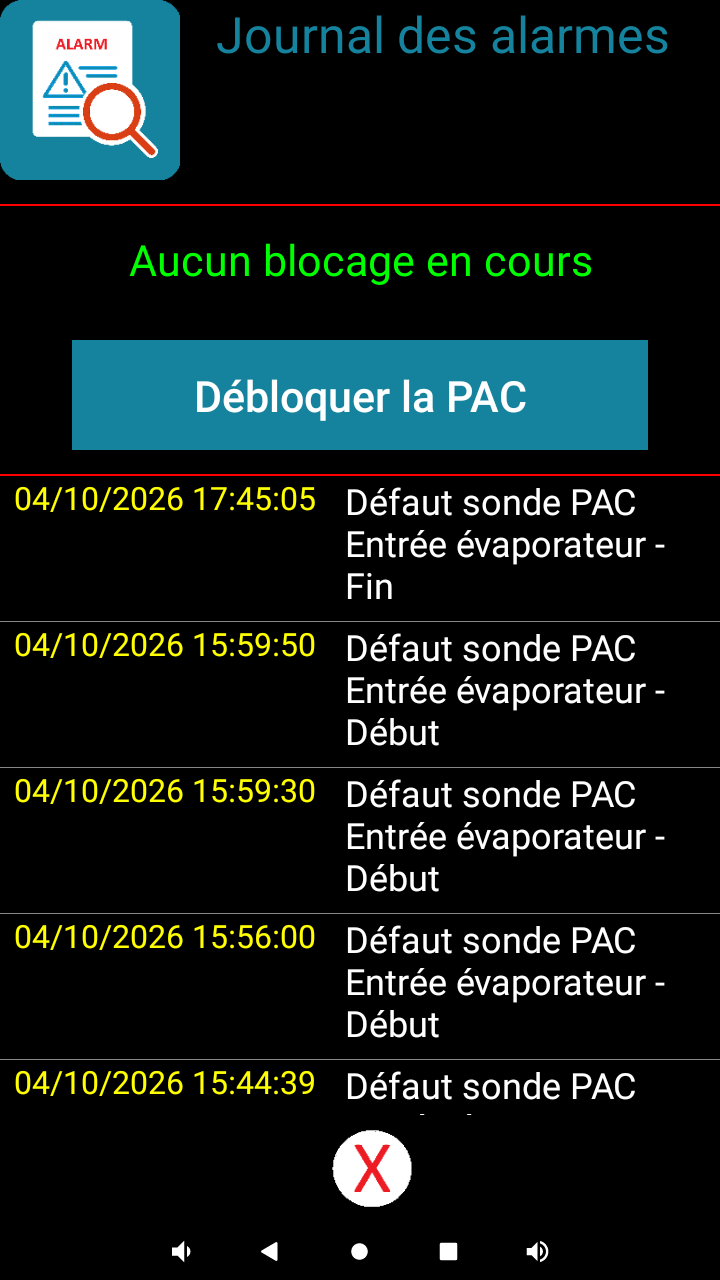

Alarm log: each fault time-stamped, from start to end

Everyone has their role

Simple for the occupant, complete for the professional

Four access levels protect the settings. The occupant sees only what concerns them; the installer and the manufacturer reach their parameters with a code.

Every screen has its own built-in help page, in the tablet's language, and an assistant answers questions asked in everyday words.

Level	What it allows
Owner	Switching functions on and off, setpoints, schedules. No code.
Installer	Commissioning: sensors, outputs, curves, priorities, heat pump settings.
Manufacturer	Machine settings: compressor, fan, output, manufacturer parameters.
Super	synapsus support: fine-tuning of alarms and advanced troubleshooting.

Going further

Control designed for today's heat pumps

Variable speed, multi-function, solar energy, and an artificial intelligence that improves with every installation. Let's talk about your project.
